Cold Room Panels.
A factory-made insulated wall panel with metal facing combined with a polyurethane foam core. The panel has a width of 1170 mm with lengths up to 12 metres, and the side joint is formed with a tongue and groove.
On this page
Specification
Specified to the micron.
Panel width
1170 mm
With tongue-and-groove side joint.
Maximum length
12 metres
Single length, no joints.
Thickness
30 – 200 mm
Self-bonding polyurethane foam core.
| Property | Specification |
|---|---|
| Width | 1170 mm |
| Maximum length | Up to 12 metres |
| Thickness of panel | 30 to 200 mm |
| Core | Self-bonding polyurethane foam |
| Facings | Polyester coated aluminium, aluzinc, stainless steel or FRP |
| Density | 40 kg/m³ |
| K value | 0.027 W/m·K |
Joint
Tongue and groove, panel to panel.
The side joint is formed with a tongue and groove, so panels lock to one another and the insulation line is continuous across the wall.
Facings
Specified to the room.
Polyester coated aluminium, aluzinc, stainless steel or FRP facings — selected for the hygiene and corrosion requirements of what is stored inside.
Supporting data
Substrate, corrosion, coatings.
Density 40 kg/m³ — K 0.027 W/m·K
U value by thickness.
- 50 mm — 0.54 W/m²·°C
- 100 mm — 0.27 W/m²·°C
- 150 mm — 0.20 W/m²·°C
- 200 mm — 0.14 W/m²·°C
Applications
Applications

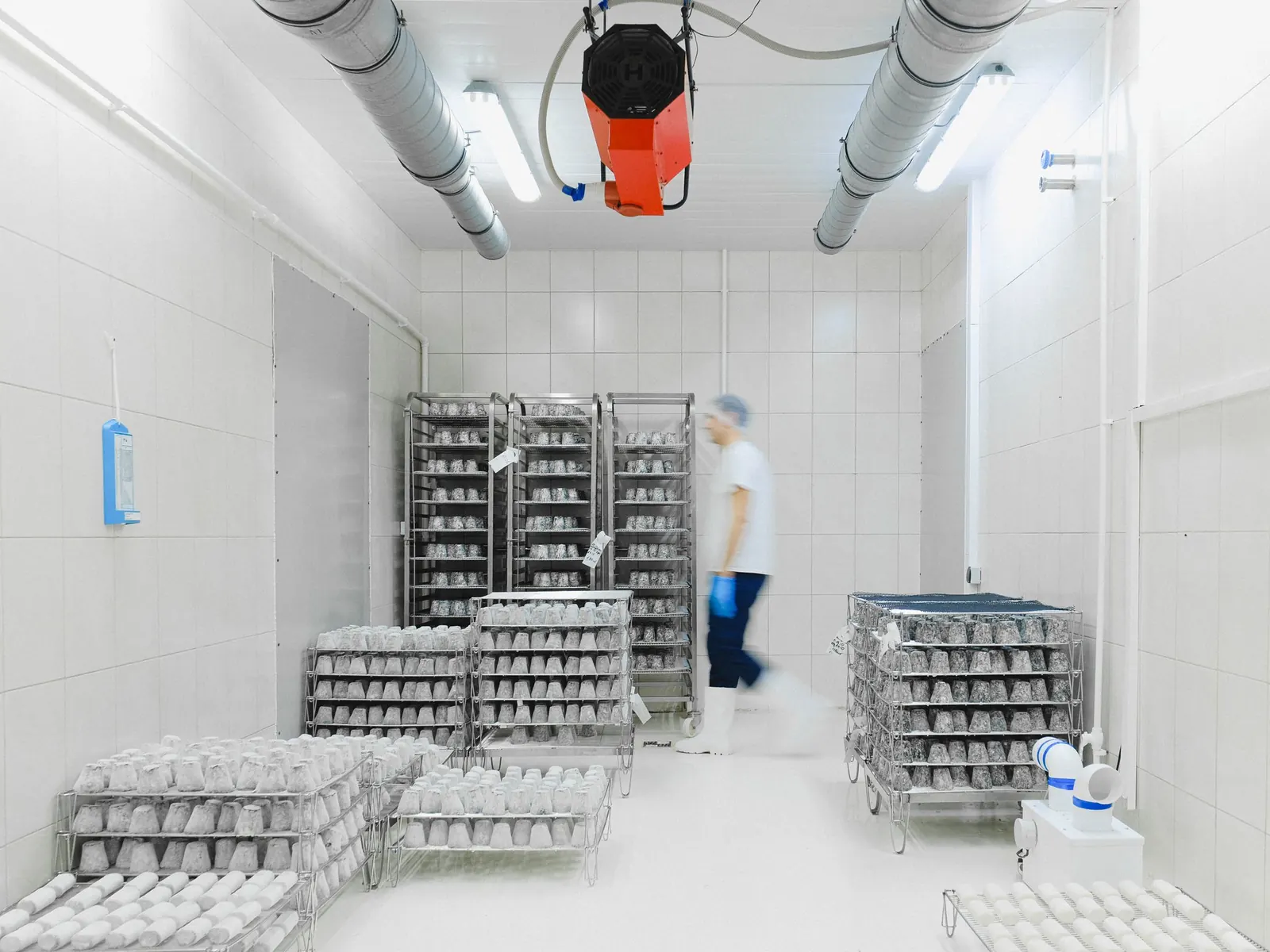

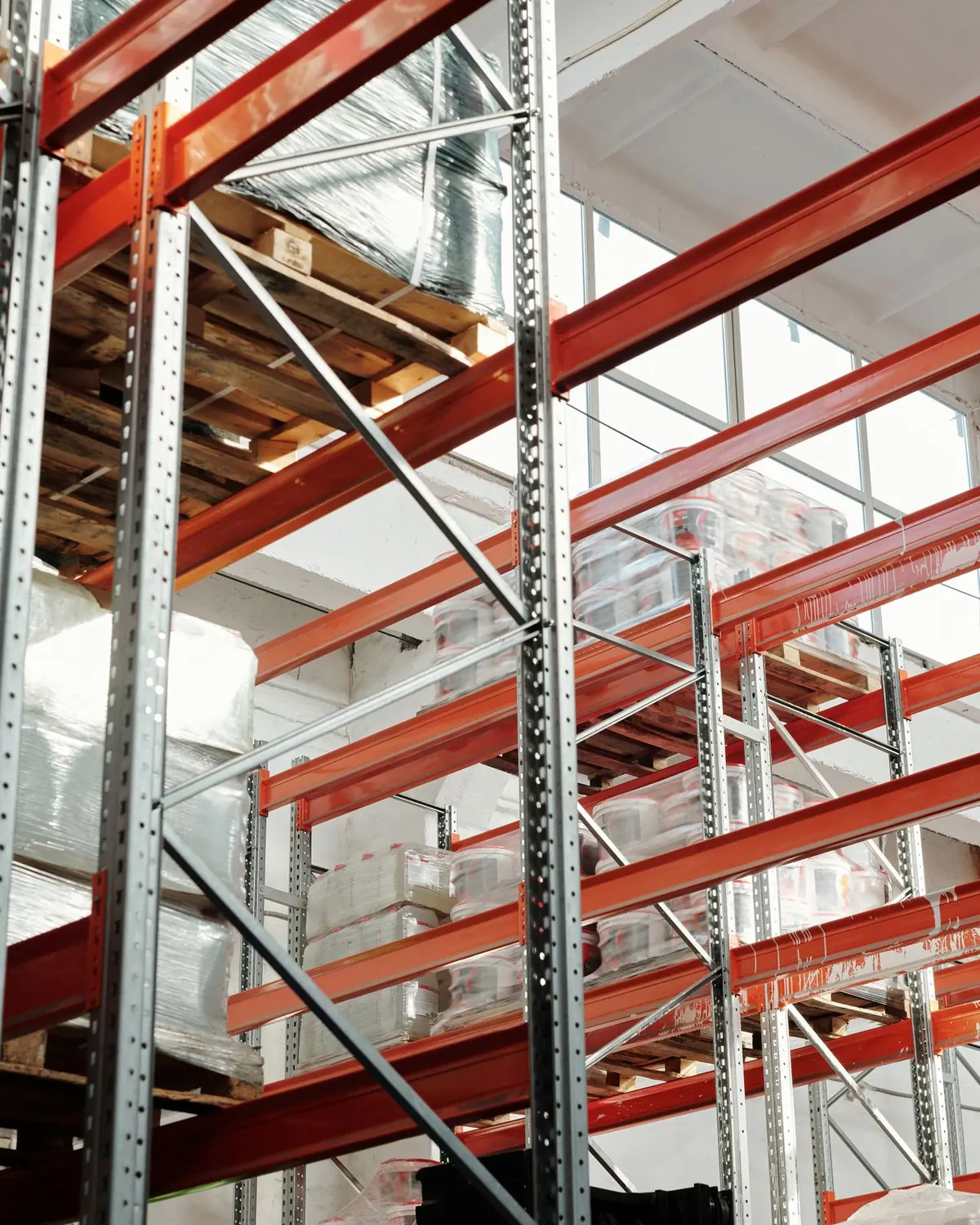

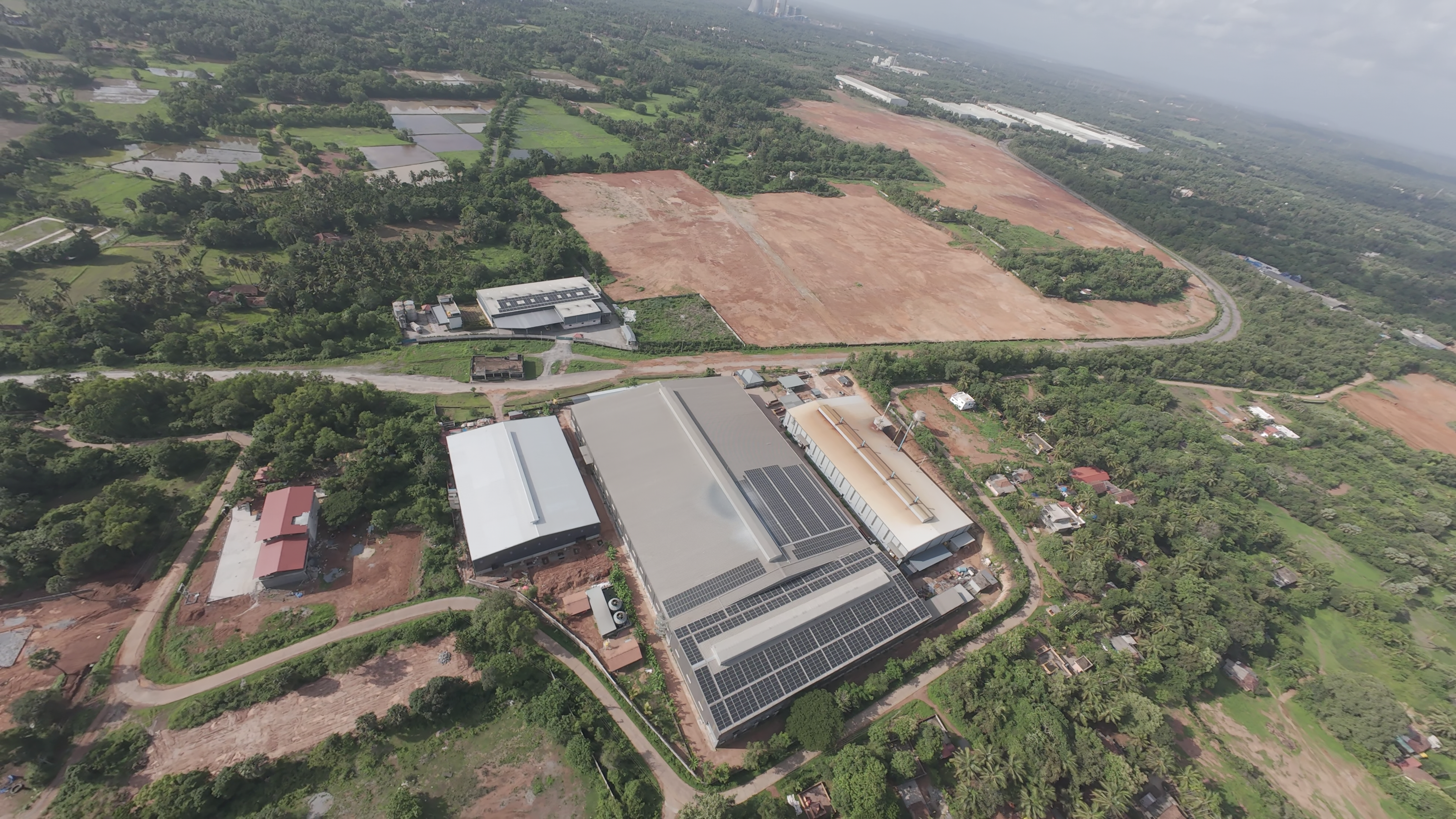

- Cold rooms and cold storage

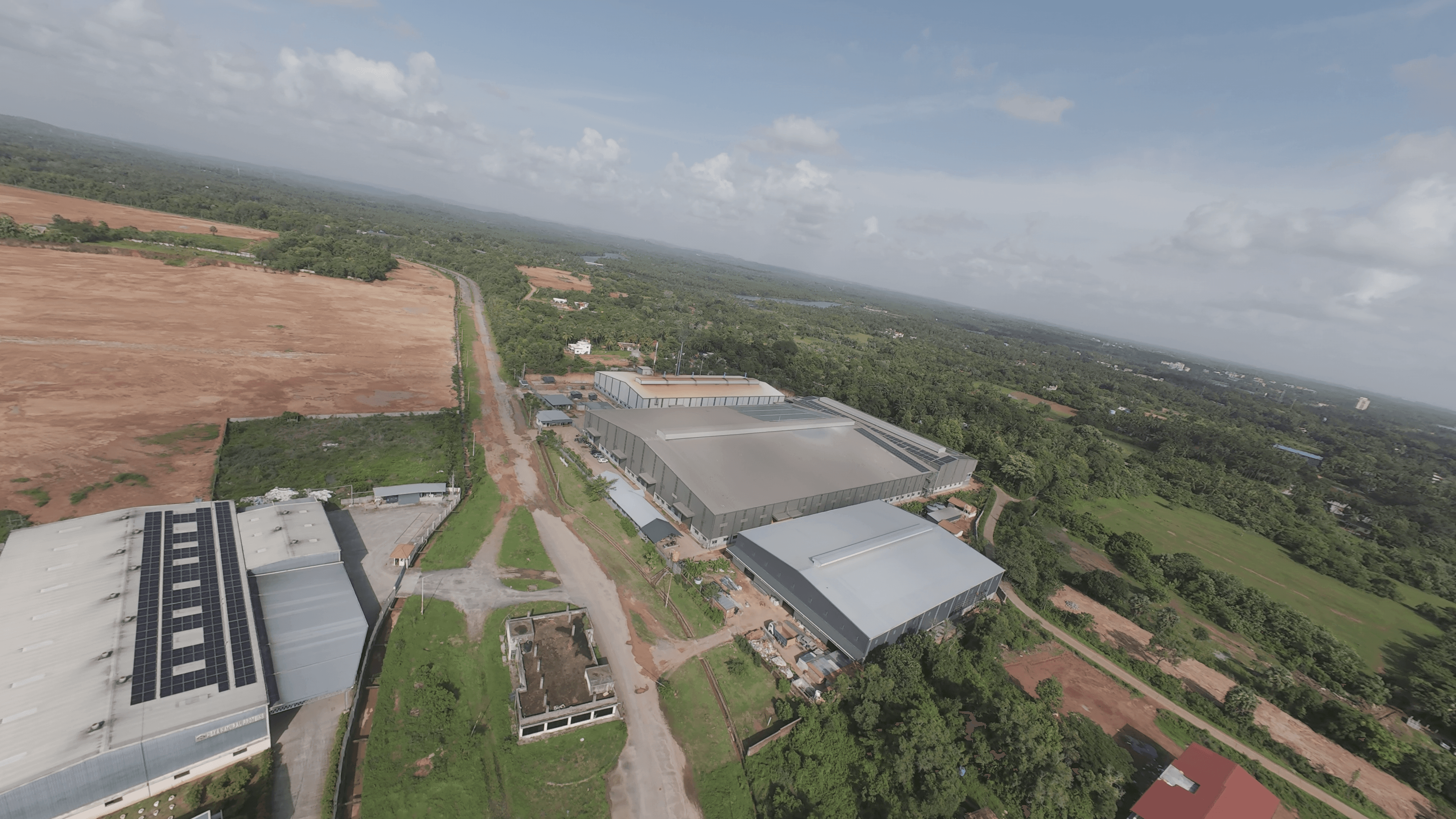

- Food processing factories
- Skid-mounted cold rooms
- Cold room trucks
Ready when you are
Specify a cold room.
Give us the room size and the holding temperature — we will specify panel thickness, facing and the U value it lands on.
