Polycarbonate Cladding.
Prime offers multiwall polycarbonate cladding sheets of 5.8 m length and 2.1 m width, in thicknesses from 4 mm to 10 mm. An extremely high thermal insulation value can be achieved even with transparency — the most complete solution where transparency and insulation are both required.
On this page
Specification
Specified to the micron.
Sheet size
5.8 × 2.1 m
Length by width, multiwall polycarbonate.
Thickness
4 – 10 mm
Subject to availability.
Colours
8 standard
Clear, translucent, opal and six tints.
| Property | Specification |
|---|---|
| Length | 5.8 m |
| Width | 2.1 m |
| Thickness range | 4 mm to 10 mm |
| Colours | Clear (CL01), Translucent (OP02), Grass Green (GN02), Opal (OP03), Blue (BU01), Lake Blue (BU02), Bronze (BZ01), Green (GN01), Grey (GY01) |
Prime metal building system can supply polycarbonate sheets in thicknesses from 4 mm to 10 mm; colours subject to availability. Refer to the polycarbonate data sheet for more details.
Insulation
Transparent and still insulating.
One of the main benefits of choosing polycarbonate sheet is that an extremely high thermal insulation value can be achieved even with transparency.
Sandwich panel
Also available as a panel.
Polycarbonate sandwich panels are produced using polyurethane with internal and external sheets of polycarbonate, in thicknesses from 30 mm to 200 mm — used for high-saline corrosion segments like the marine industry and cold rooms.

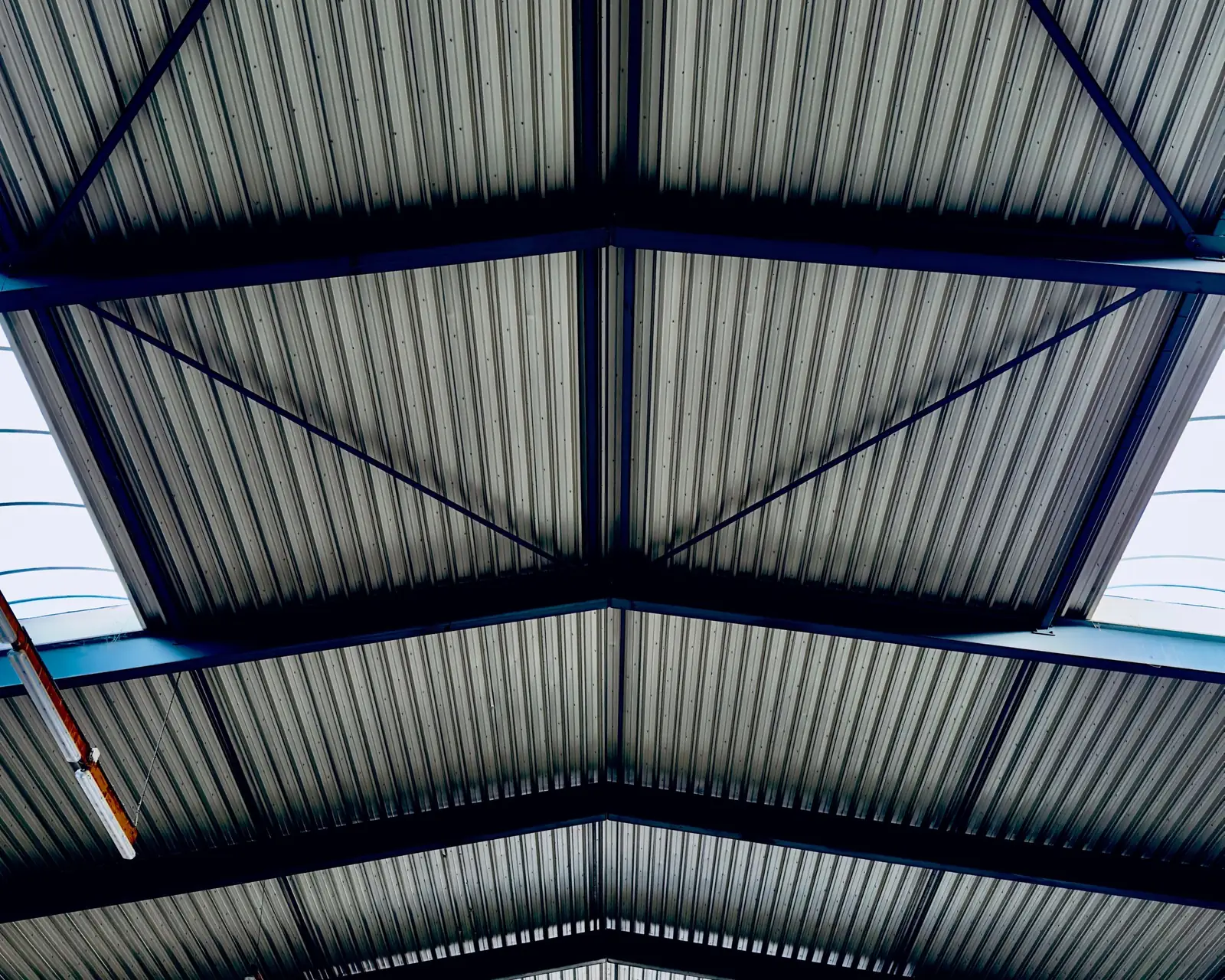

Applications
Applications

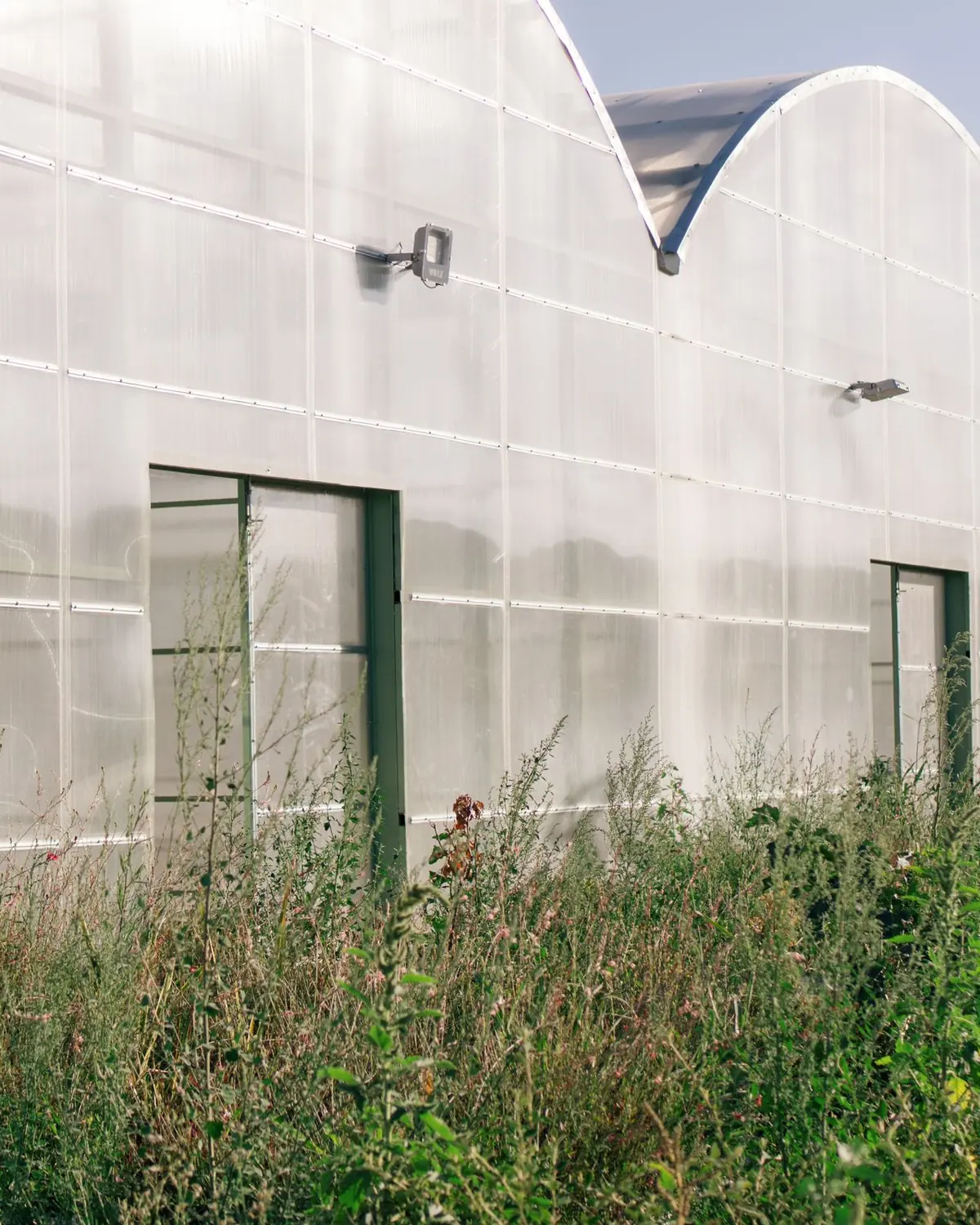

- Covering and decorating industrial, residential, commercial and public buildings
- Stadiums, gymnasiums and sports clubs

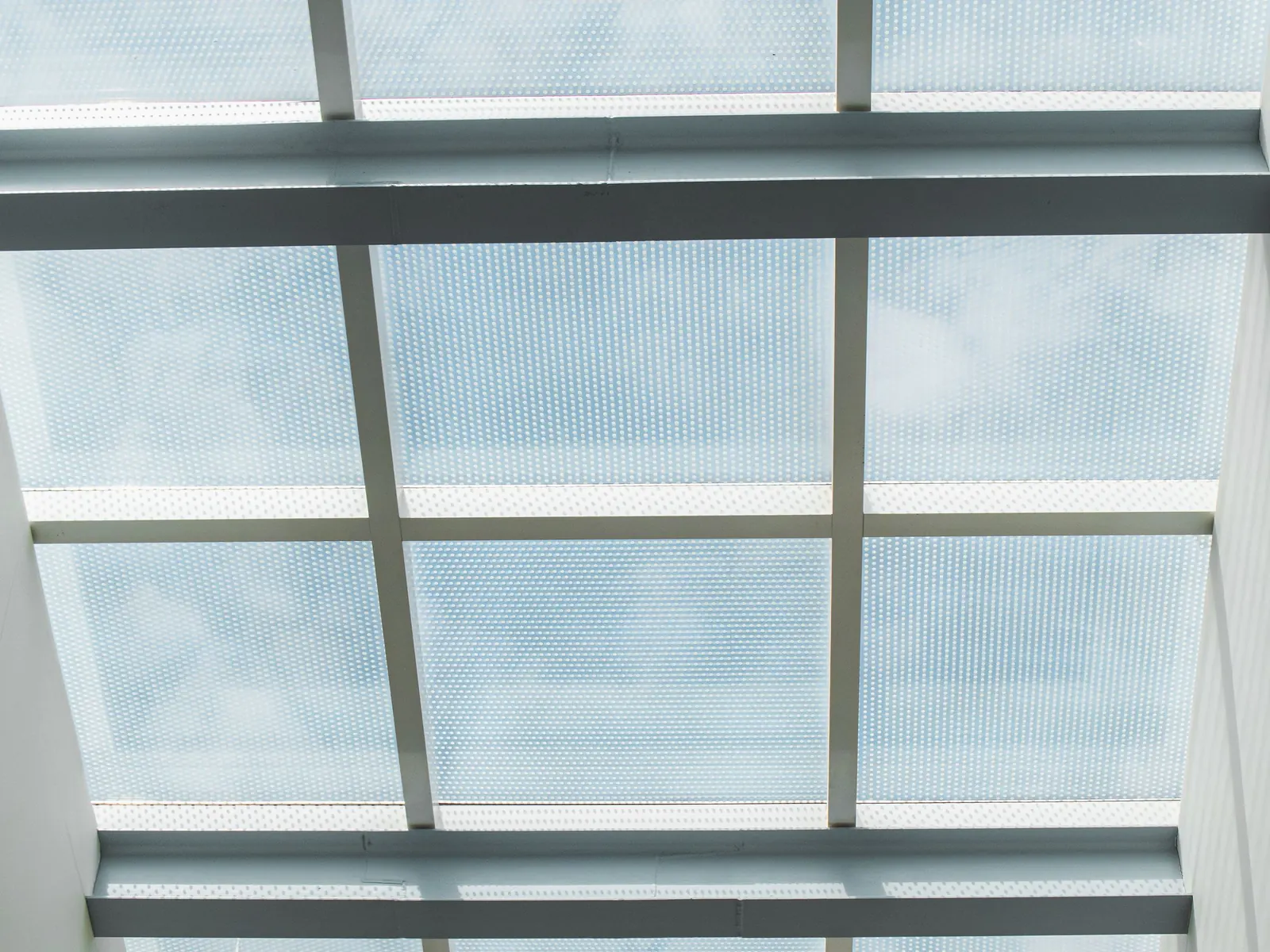

- Skylights for living rooms, swimming pools, courtyards and greenhouses
- Light boxes, signboards and advertising panels
- Train station roofing, covered bus stops and airport roofing
Ready when you are
Specify polycarbonate cladding.
Tell us the opening and the light transmission you want — we will confirm the thickness, the tint and the fixing system.
